GB003-S05.GB003-S09.GB003-S12.GB003-D2525-01.3-100W开板式系列，上海元册电子科技有限公司.兼容广州金升阳科技相关产品

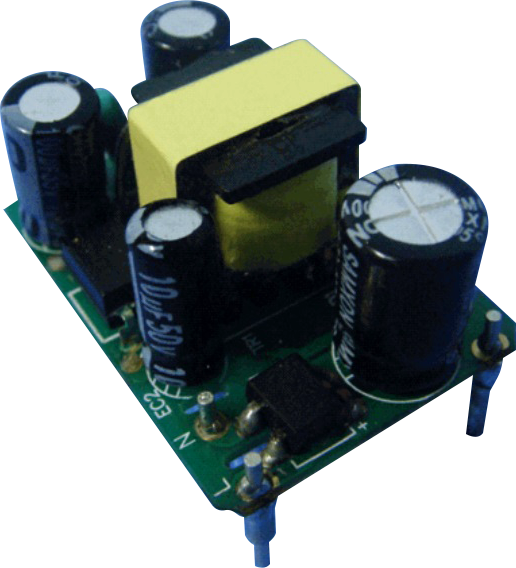

3-100W 开板式系列

: GB003; ● 功率：3W; ● 输入电压(VDC)：90～264VAC; ● 输出类型：Single; ● 隔离电压：150VDC; ● 尺寸：32.5×23.0×16.0; ● 封装形式：DIL

产品系列 P/N (Series)	功率 Watt	输入电压(VDC) Input Range	输出类型 Output Type	隔离电压 Isolated	尺寸 Size(mm)	封装形式 Package Style	PDF 下载
GB10M	10W	80-264VAC	Single	4000VAC	48.5×23.0×14.0	DIL	下载
GB5M	5W	80-264VAC	Single	4000VAC	48.5×23.0×14.0	DIL	下载
GB5M	5W	80-264VAC	Single	4000VAC	48.5×23.0×14.0	DIL	下载
GB003	3W	90～264VAC	Single	150VDC	32.5×23.0×16.0	DIL	下载
GB005	5-6W	90～264VAC	Single	150VDC	48.5×23.0×16.0	DIL	下载
GB015	15W	90～264VAC	Single	150VDC	80.0×40.0×24.0	DIL	下载
GB020	20/30W	90～264VAC	Single/Dual	3000VDC	101.6×50.8×31.0	DIL	下载
GB030	20/30W	90～264VAC	Single/Dual	3000VDC	101.6×50.8×31.0	DIL	下载
GB040	40W	90～264VAC	Dual/Triple	3000VDC	101.6×50.8×31.0	DIL	下载
GB40A	40/60W	90～264VAC	Single	1500VDC	101.6×50.8×31.0	DIL	下载
GB60A	40/60W	90～264VAC	Single	1500VDC	101.6×50.8×31.0	DIL	下载
GB100	100W	90～264VAC	Single	3000VDC	127×76.2×35.56	DIL	下载
